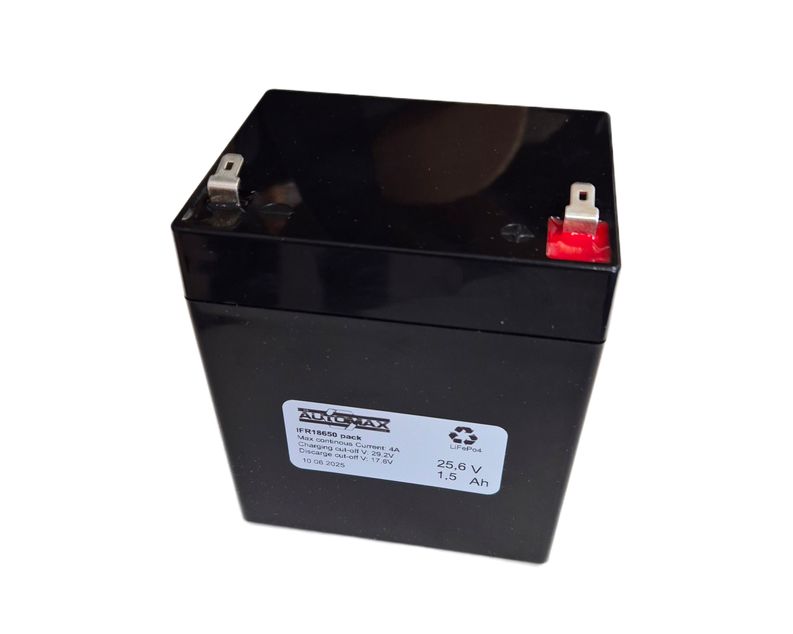

IFR 18650 pack (25,6V-1,5Ah-LifePo4- 4,8mm flatstift))

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1.5Ah

Standard discharge（0.2C） after standard charge

Minimum

1.4Ah

2

Nominal Voltage

25.6V

Mean Operation Voltage

3

Cut-off Voltage Discharge

^17.6±0.2V

Cut-off Voltage

4

Cut-off    Voltage charge

^30.0±0.2V

5

Standard charge

Constant Current 0.2C Constant Voltage30.0V 0.02C cut-off

Charge time：Approx 6.0h

Standard discharge

Constant Current 0.2C end Voltsge 17.6V

7

Fast charge

Constant Current 0.5C Constant Voltage 30.0V 0.02C cut-off

Charge time：Approx 2.5h

8

Fast discharge

Constant Current 1C end Voltage 30.0V

9

Maximum Continuous Charge Current

1.5A

10

Maximum Continuous Discharge Current

4A

11

Operation Temperature Range

Charge：0~45℃

60±25%R.H. Bare Cell

Discharge：-20~60℃

12

Storage Temperature Range

Less than 1 year：-20~25℃

60±25%R.H. at the shipment state

Less then 3 months：-20~40℃

14

Weight

Approx：_0.55kg
